Micro Temperature and Time controller

Micro Temperature Time Control Device

The Micro Temperature Controller's small, compact design(patented) provides a quick solution for implementing heating features into your existing designs without the hassle of reorganize circuit layouts. It's robust feature allows customized ON/OFF temperature range as well as time interval settings, with more than 10,000 specifications available. It can be utilized with our light weighted Ultra-thin Flexible Heater, or with any products with limited space. KLC's Micro Temperature Time Controller has the following features:

  • Small, light weighted, space saving design(patent).
  • Easy to use, does not require additional controls or circuit design .
  • Sampling rate <0.1seconds.
  • Customized ON/OFF temperature.
  • Customized ON/OFF time interval and temperature rotation.
  • More than 10,000 specifications available.
  • Can be utilized with KLC heater product ranges.
  • Suitable for pet warmer, heater blankets, heater mattress etc.

Micro Temperature Time Controller - Model Differences

Model Description Constant Temp (±1℃) Temperature Duration (min) Loop Timer Setting
Low Limit High Limit ON Timer OFF Timer
MT Constant Temp. Control -30℃~120℃
(Special design -30℃~180℃)

MTT Constant Temp. with Set Time Control 1min~1440min (24HR)
MTR Temp. Limit Control   -30℃~120℃
(Special design -30℃~180℃)

MTTR Temp. Limit Control with Timer 1min~1440min (24HR)
MTC Constant Temp. Control with Loop Timer -30℃~120℃
(Special design -30℃~180℃)
    1min~99min
(Longer loop time can be customized)

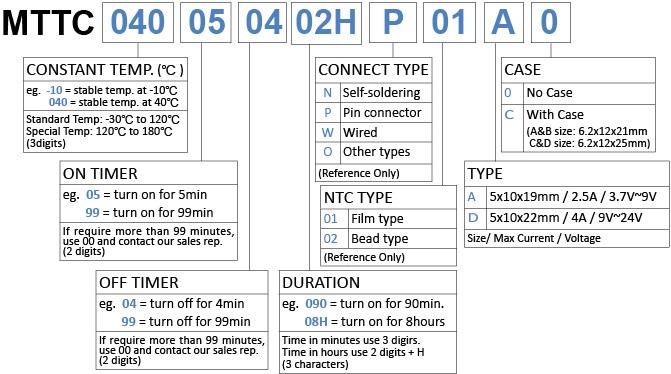

MTTC Constant Temp. and Loop Timer and Duration Control 1min~1440min (24HR)

Micro Temperature Time Controller (MT Series) - Basic Specifications

Dimension (L x W x T) : 25 x 12 x 5mm
Material : Polyolefin
Input Voltage : DC3.7V~12V  /  DC12V~24V
Frequency : 50/60Hz
Max. Current : ≦4A(10A/within 30 seconds)
Ambient Humidity : 0 to 80%RH; with no condensation or icing
Temperature Range : -30℃ to 120℃ (Other temperature range can be customized)
Setting/Indication Method : LED indicator
Temperature Control : Customized temperature setting - in units of 1℃
  Max. temp. of 120℃(standard); 150℃ and 180℃ also available upon request
Time Control : Continuous(standard), can also customize heating time period
Rotation Control : No rotation(standard), can also customize rotation settings

Please click on the  TABs  below for more information and product specifications.

MT Model

Constant Temperature Control

The MT model is recommended for use when temperature precision is required and rapid on-off switching can be tolerated without damaging the heating device or end product. The required constant temperature is fixed for precise temperature control. The thermostat switches off the heater when it reaches the desired temperature and turns back on when sensed temperature drops (life >10,000,000 cycles).

MT Model Part Numbering
No. Model Constant Temperature(℃)
1 MT-30XXXX -30℃
2 MT-25XXXX -25℃
3 MT-20XXXX -20℃
4 MT-15XXXX -15℃
5 MT-10XXXX -10℃
6 MT-05XXXX -5℃
7 MT000XXXX 0℃
8 MT001XXXX 1℃
9 MT003XXXX 3℃
10 MT005XXXX 5℃
11 MT010XXXX 10℃
12 MT015XXXX 15℃
13 MT020XXXX 20℃
14 MT025XXXX 25℃
15 MT030XXXX 30℃
16 MT035XXXX 35℃
17 MT036XXXX 36℃
18 MT037XXXX 37℃
19 MT038XXXX 38℃
20 MT039XXXX 39℃
21 MT040XXXX 40℃
22 MT042XXXX 42℃
23 MT045XXXX 45℃
24 MT047XXXX 47℃
25 MT050XXXX 50℃
26 MT052XXXX 52℃
27 MT055XXXX 55℃
28 MT055XXXX 55℃
29 MT060XXXX 60℃
30 MT065XXXX 65℃
31 MT070XXXX 70℃
32 MT075XXXX 75℃
33 MT080XXXX 80℃
34 MT085XXXX 85℃
35 MT090XXXX 90℃
36 MT095XXXX 95℃
37 MT100XXXX 100℃
38 MT105XXXX 105℃
39 MT110XXXX 110℃
40 MT115XXXX 115℃
41 MT120XXXX 120℃
42 MT125XXXX 125℃
43 MT130XXXX 130℃
44 MT135XXXX 135℃
45 MT140XXXX 140℃
46 MT145XXXX 145℃
47 MT150XXXX 150℃
48 MT155XXXX 155℃
49 MT160XXXX 160℃
50 MT165XXXX 165℃
51 MT170XXXX 170℃
52 MT175XXXX 175℃
53 MT180XXXX 180℃
  • Models Highlighted are standard models. The delivery time for these models is shorter.
  • Models in BLUE are special models with higher temperature range up to 180℃.
  • Standard Temperatures -30℃~120℃
    Voltage: 3.7V~24V
    Maximum Current: 2.5A (Type A); 4A (Type D)
    Other specifications not listed are also available upon request.
    For example: Constant temperature kept at -11℃ / -10℃ … /-1℃ / 0℃ / 1℃ / 2℃ / 3℃… 178℃ / 179℃

MTT Model

Constant Temperature with Set Time Controller

The MTT model starts the heating process when turned on and controls the heater to stay at constant temperature, then turns off after a set time period. This model is advised for systems which require one-off heating when the power is switched on, such as medical irradiators, where power is turned on when in use and automatically turns off once reached the set time period. Provides a safety precaution for unattended usages (without supervision).

MTT Model Part Numbering
No. Model Constant Temperature(℃) Duration(min)
1 MTT-30015XXXX -30℃ 15'
2 MTT-30030XXXX 30'
3 MTT-30045XXXX 45'
4 MTT-30060XXXX 60'
5 MTT-25015XXXX -25℃ 15'
6 MTT-25030XXXX 30'
7 MTT-25045XXXX 45'
8 MTT-25060XXXX 60'
9 MTT-20015XXXX -20℃ 15'
10 MTT-20030XXXX 30'
11 MTT-20045XXXX 45'
12 MTT-20060XXXX 60'
13 MTT-15015XXXX -15℃ 15'
14 MTT-15030XXXX 30'
15 MTT-15045XXXX 45'
16 MTT-15060XXXX 60'
17 MTT-10015XXXX -10℃ 15'
18 MTT-10030XXXX 30'
19 MTT-10045XXXX 45'
20 MTT-10060XXXX 60'
21 MTT-05015XXXX -5℃ 15'
22 MTT-05030XXXX 30'
23 MTT-05045XXXX 45'
24 MTT-05060XXXX 60'
25 MTT000015XXXX 0℃ 15'
26 MTT000030XXXX 30'
27 MTT000045XXXX 45'
28 MTT000060XXXX 60'
29 MTT005015XXXX 5℃ 15'
30 MTT005030XXXX 30'
31 MTT005045XXXX 45'
32 MTT005060XXXX 60'
33 MTT010015XXXX 10℃ 15'
34 MTT010030XXXX 30'
35 MTT010045XXXX 45'
36 MTT010060XXXX 60'
37 MTT015015XXXX 15℃ 15'
38 MTT015030XXXX 30'
39 MTT015045XXXX 45'
40 MTT015060XXXX 60'
41 MTT020015XXXX 20℃ 15'
42 MTT020030XXXX 30'
43 MTT020045XXXX 45'
44 MTT020060XXXX 60'
45 MTT025015XXXX 25℃ 15'
46 MTT025030XXXX 30'
47 MTT025045XXXX 45'
48 MTT025060XXXX 60'
49 MTT030015XXXX 30℃ 15'
50 MTT030030XXXX 30'
51 MTT030045XXXX 45'
52 MTT030060XXXX 60'
53 MTT035015XXXX 35℃ 15'
54 MTT035030XXXX 30'
55 MTT035045XXXX 45'
56 MTT035060XXXX 60'
57 MTT036015XXXX 36℃ 15'
58 MTT036030XXXX 30'
59 MTT036045XXXX 45'
60 MTT036060XXXX 60'
61 MTT037015XXXX 37℃ 15'
62 MTT037030XXXX 30'
63 MTT037045XXXX 45'
64 MTT037060XXXX 60'
65 MTT038015XXXX 38℃ 15'
66 MTT038030XXXX 30'
67 MTT038045XXXX 45'
68 MTT038060XXXX 60'
69 MTT040015XXXX 40℃ 15'
70 MTT040030XXXX 30'
71 MTT040045XXXX 45'
72 MTT040060XXXX 60'
73 MTT042015XXXX 42℃ 15'
74 MTT042030XXXX 30'
75 MTT042045XXXX 45'
76 MTT042060XXXX 60'
77 MTT045015XXXX 45℃ 15'
78 MTT045030XXXX 30'
79 MTT045045XXXX 45'
80 MTT045060XXXX 60'
81 MTT050015XXXX 50℃ 15'
82 MTT050030XXXX 30'
83 MTT050045XXXX 45'
84 MTT050060XXXX 60'
85 MTT055015XXXX 55℃ 15'
86 MTT055030XXXX 30'
87 MTT055045XXXX 45'
88 MTT055060XXXX 60'
89 MTT060015XXXX 60℃ 15'
90 MTT060030XXXX 30'
91 MTT060045XXXX 45'
92 MTT060060XXXX 60'
93 MTT065015XXXX 65℃ 15'
94 MTT065030XXXX 30'
95 MTT065045XXXX 45'
96 MTT065060XXXX 60'
97 MTT070015XXXX 70℃ 15'
98 MTT070030XXXX 30'
99 MTT070045XXXX 45'
100 MTT070060XXXX 60'
101 MTT075015XXXX 75℃ 15'
102 MTT075030XXXX 30'
103 MTT075045XXXX 45'
104 MTT075060XXXX 60'
105 MTT080015XXXX 80℃ 15'
106 MTT080030XXXX 30'
107 MTT080045XXXX 45'
108 MTT080060XXXX 60'
109 MTT085015XXXX 85℃ 15'
110 MTT085030XXXX 30'
111 MTT085045XXXX 45'
112 MTT085060XXXX 60'
113 MTT090015XXXX 90℃ 15'
114 MTT090030XXXX 30'
115 MTT090045XXXX 45'
116 MTT090060XXXX 60'
117 MTT095015XXXX 95℃ 15'
118 MTT095030XXXX 30'
119 MTT095045XXXX 45'
120 MTT095060XXXX 60'
121 MTT100015XXXX 100℃ 15'
122 MTT100030XXXX 30'
123 MTT100045XXXX 45'
124 MTT100060XXXX 60'
125 MTT105015XXXX 105℃ 15'
126 MTT105030XXXX 30'
127 MTT105045XXXX 45'
128 MTT105060XXXX 60'
129 MTT110015XXXX 110℃ 15'
130 MTT110030XXXX 30'
131 MTT110045XXXX 45'
132 MTT110060XXXX 60'
133 MTT115015XXXX 115℃ 15'
134 MTT115030XXXX 30'
135 MTT115045XXXX 45'
136 MTT115060XXXX 60'
137 MTT120015XXXX 120℃ 15'
138 MTT120030XXXX 30'
139 MTT120045XXXX 45'
140 MTT120060XXXX 60'
141 MTT125015XXXX 125℃ 15'
142 MTT125030XXXX 30'
143 MTT125045XXXX 45'
144 MTT125060XXXX 60'
145 MTT130015XXXX 130℃ 15'
146 MTT130030XXXX 30'
147 MTT130045XXXX 45'
148 MTT130060XXXX 60'
149 MTT135015XXXX 135℃ 15'
150 MTT135030XXXX 30'
151 MTT135045XXXX 45'
152 MTT135060XXXX 60'
153 MTT140015XXXX 140℃ 15'
154 MTT140030XXXX 30'
155 MTT140045XXXX 45'
156 MTT140060XXXX 60'
157 MTT145015XXXX 145℃ 15'
158 MTT145030XXXX 30'
159 MTT145045XXXX 45'
160 MTT145060XXXX 60'
161 MTT150015XXXX 150℃ 15'
162 MTT150030XXXX 30'
163 MTT150045XXXX 45'
164 MTT150060XXXX 60'
165 MTT155015XXXX 155℃ 15'
166 MTT155030XXXX 30'
167 MTT155045XXXX 45'
168 MTT155060XXXX 60'
169 MTT160015XXXX 160℃ 15'
170 MTT160030XXXX 30'
171 MTT160045XXXX 45'
172 MTT160060XXXX 60'
173 MTT165015XXXX 165℃ 15'
174 MTT165030XXXX 30'
175 MTT165045XXXX 45'
176 MTT165060XXXX 60'
177 MTT170015XXXX 170℃ 15'
178 MTT170030XXXX 30'
179 MTT170045XXXX 45'
180 MTT170060XXXX 60'
181 MTT175015XXXX 175℃ 15'
182 MTT175030XXXX 30'
183 MTT175045XXXX 45'
184 MTT175060XXXX 60'
185 MTT180015XXXX 180℃ 15'
186 MTT180030XXXX 30'
187 MTT180045XXXX 45'
188 MTT180060XXXX 60'
  • Models Highlighted are standard models. The delivery time for these models is shorter.
  • Models in BLUE are special models with higher temperature range up to 180℃.
  • Standard Temperatures -30℃~120℃
    Voltage: 3.7V~24V
    Maximum Current: 2.5A (Type A); 4A (Type D)
    Other specifications not listed are also available upon request.
    For example:
    Heating Duration of 1' / 2' / 3' / 4'... 1year (365 days)
    Constant temperature kept at 1℃ / 2℃ ... 31℃ / 32℃ / 33℃ ... 178℃ / 179℃

MTR Model

Temperature Limit Controller

This model is mostly used when precise control over temperature is not necessary, for systems that cannot handle frequent on and off operations (overshoot) and where temperature change is extremely slow. The heater is regulated to start and switch off when the sensed temperature has reached the predefined Low (turn ON) and High (turn OFF) temperature. The ON/OFF differential temperature range can be customize from 1°C onwards.

MTR Model Part Numbering
No. Model Low Limit(℃) High Limit(℃)
1 MTR-30-28XXXX -30℃ -28℃
2 MTR-30-25XXXX -25℃
3 MTR-30-20XXXX -20℃
4 MTR-25-23XXXX -25℃ -23℃
5 MTR-25-20XXXX -20℃
6 MTR-25-15XXXX -15℃
7 MTR-20-18XXXX -20℃ -18℃
8 MTR-20-15XXXX -15℃
9 MTR-20-10XXXX -10℃
10 MTR-15-13XXXX -15℃ -13℃
11 MTR-15-10XXXX -10℃
12 MTR-15-05XXXX -5℃
13 MTR-10-08XXXX -10℃ -8℃
14 MTR-10-05XXXX -5℃
15 MTR-10000XXXX 0℃
16 MTR-05-03XXXX -5℃ -3℃
17 MTR-05000XXXX 0℃
18 MTR-05005XXXX 5℃
19 MTR000002XXXX 0℃ 2℃
20 MTR000005XXXX 5℃
21 MTR000010XXXX 10℃
22 MTR005007XXXX 5℃ 7℃
23 MTR005010XXXX 10℃
24 MTR005015XXXX 15℃
25 MTR010012XXXX 10℃ 12℃
26 MTR010015XXXX 15℃
27 MTR010020XXXX 20℃
28 MTR015017XXXX 15℃ 17℃
29 MTR015020XXXX 20℃
30 MTR015025XXXX 25℃
31 MTR020022XXXX 20℃ 22℃
32 MTR020025XXXX 25℃
33 MTR020030XXXX 30℃
34 MTR025027XXXX 25℃ 27℃
35 MTR025030XXXX 30℃
36 MTR025035XXXX 35℃
37 MTR030032XXXX 30℃ 32℃
38 MTR030035XXXX 35℃
39 MTR030040XXXX 40℃
40 MTR035037XXXX 35℃ 37℃
41 MTR035040XXXX 40℃
42 MTR035045XXXX 45℃
43 MTR037039XXXX 37℃ 39℃
44 MTR037042XXXX 42℃
45 MTR037047XXXX 47℃
46 MTR040042XXXX 40℃ 42℃
47 MTR040045XXXX 45℃
48 MTR040050XXXX 50℃
49 MTR042044XXXX 42℃ 44℃
50 MTR042047XXXX 47℃
51 MTR042052XXXX 52℃
52 MTR045047XXXX 45℃ 47℃
53 MTR045050XXXX 50℃
54 MTR045055XXXX 55℃
55 MTR050052XXXX 50℃ 52℃
56 MTR050055XXXX 55℃
57 MTR050060XXXX 60℃
58 MTR055057XXXX 55℃ 57℃
59 MTR055060XXXX 60℃
60 MTR055065XXXX 65℃
61 MTR060062XXXX 60℃ 62℃
62 MTR060065XXXX 65℃
63 MTR060070XXXX 70℃
64 MTR065067XXXX 65℃ 67℃
65 MTR065070XXXX 70℃
66 MTR065075XXXX 75℃
67 MTR070072XXXX 70℃ 72℃
68 MTR070075XXXX 75℃
69 MTR070080XXXX 80℃
70 MTR075077XXXX 75℃ 77℃
71 MTR075080XXXX 80℃
72 MTR075085XXXX 85℃
73 MTR080082XXXX 80℃ 82℃
74 MTR080085XXXX 85℃
75 MTR080090XXXX 90℃
76 MTR085087XXXX 85℃ 87℃
77 MTR085090XXXX 90℃
78 MTR085095XXXX 95℃
79 MTR090092XXXX 90℃ 92℃
80 MTR090095XXXX 95℃
81 MTR090100XXXX 100℃
82 MTR095097XXXX 95℃ 97℃
83 MTR095100XXXX 100℃
84 MTR095105XXXX 105℃
85 MTR100102XXXX 100℃ 102℃
86 MTR100105XXXX 105℃
87 MTR100110XXXX 110℃
88 MTR105107XXXX 105℃ 107℃
89 MTR105110XXXX 110℃
90 MTR105115XXXX 115℃
91 MTR110112XXXX 110℃ 112℃
92 MTR110115XXXX 115℃
93 MTR110120XXXX 120℃
94 MTR115117XXXX 115℃ 117℃
95 MTR115120XXXX 120℃
96 MTR115125XXXX 125℃
97 MTR120122XXXX 120℃ 122℃
98 MTR120125XXXX 125℃
99 MTR120130XXXX 130℃
100 MTR125127XXXX 125℃ 127℃
101 MTR125130XXXX 130℃
102 MTR125135XXXX 135℃
103 MTR130132XXXX 130℃ 132℃
104 MTR130135XXXX 135℃
105 MTR130140XXXX 140℃
106 MTR135137XXXX 135℃ 137℃
107 MTR135140XXXX 140℃
108 MTR135145XXXX 145℃
109 MTR140142XXXX 140℃ 142℃
110 MTR140145XXXX 145℃
111 MTR140150XXXX 150℃
112 MTR145147XXXX 145℃ 147℃
113 MTR145150XXXX 150℃
114 MTR145155XXXX 155℃
115 MTR150152XXXX 150℃ 152℃
116 MTR150155XXXX 155℃
117 MTR150160XXXX 160℃
118 MTR155157XXXX 155℃ 157℃
119 MTR155160XXXX 160℃
120 MTR155165XXXX 165℃
121 MTR160162XXXX 160℃ 162℃
122 MTR160165XXXX 165℃
123 MTR160170XXXX 170℃
124 MTR165167XXXX 165℃ 167℃
125 MTR165170XXXX 170℃
126 MTR165175XXXX 175℃
127 MTR170172XXXX 170℃ 172℃
128 MTR170175XXXX 175℃
129 MTR170180XXXX 180℃
130 MTR175177XXXX 175℃ 177℃
131 MTR175180XXXX 180℃
132 MTR175185XXXX 185℃
  • Models Highlighted are standard models. The delivery time for these models is shorter.
  • Models in BLUE are special models with higher temperature range up to 180℃.
  • Standard Temperatures -30℃~120℃
    Voltage: 3.7V~24V
    Maximum Current: 2.5A (Type A); 4A (Type D)
    Other specifications not listed are also available upon request.
    For example:
    -1℃ ON / 5℃ OFF
    1℃ ON / 8℃ OFF
    40℃ ON / 43℃ OFF

MTTR Model

Temperature Limit Controller with Timer

Similar to MTT which switches off automatically after a time period, but utilizes the MTR temperature control system where temperature is controlled between a range. Turns ON when the temperature reached Low limit and turns OFF when the temperature reached High limit.

MTTR Model Part Numbering
No. Model Low Limit (℃) High Limit(℃) Duration (min)
1 MTTR-30-25015XXXX -30℃ -25℃ 15'
2 MTTR-30-25030XXXX 30'
3 MTTR-30-25045XXXX 45'
4 MTTR-30-25060XXXX 60'
5 MTTR-30-20015XXXX -20℃ 15'
6 MTTR-30-20030XXXX 30'
7 MTTR-30-20045XXXX 45'
8 MTTR-30-20060XXXX 60'
9 MTTR-XX-XX015XXXX -25℃~-5℃ 1℃~5℃ 15'
10 MTTR-XX-XX030XXXX 30'
11 MTTR-XX-XX045XXXX 45'
12 MTTR-XX-XX060XXXX 60'
13 MTTR-XX-XX015XXXX 6℃~10℃ 15'
14 MTTR-XX-XX030XXXX 30'
15 MTTR-XX-XX045XXXX 45'
16 MTTR-XX-XX060XXXX 60'
17 MTTR000002015XXXX 0℃ 2℃ 15'
18 MTTR000002030XXXX 30'
19 MTTR000002045XXXX 45'
20 MTTR000002060XXXX 60'
21 MTTR000005015XXXX 5℃ 15'
22 MTTR000005030XXXX 30'
23 MTTR000005045XXXX 45'
24 MTTR000005060XXXX 60'
25 MTTR000010015XXXX 10℃ 15'
26 MTTR000010030XXXX 30'
27 MTTR000010045XXXX 45'
28 MTTR000010060XXXX 60'
29 MTTR005007015XXXX 5℃ 7℃ 15'
30 MTTR005007030XXXX 30'
31 MTTR005007045XXXX 45'
32 MTTR005007060XXXX 60'
33 MTTR005010015XXXX 10℃ 15'
34 MTTR005010030XXXX 30'
35 MTTR005010045XXXX 45'
36 MTTR005010060XXXX 60'
37 MTTR005015015XXXX 15℃ 15'
38 MTTR005015030XXXX 30'
39 MTTR005015045XXXX 45'
40 MTTR005015060XXXX 60'
41 MTTR010012015XXXX 10℃ 12℃ 15'
42 MTTR010012030XXXX 30'
43 MTTR010012045XXXX 45'
44 MTTR010012060XXXX 60'
45 MTTR010015015XXXX 15℃ 15'
46 MTTR010015030XXXX 30'
47 MTTR010015045XXXX 45'
48 MTTR010015060XXXX 60'
49 MTTR010020015XXXX 20℃ 15'
50 MTTR010020030XXXX 30'
51 MTTR010020045XXXX 45'
52 MTTR010020060XXXX 60'
53 MTTR0XXXXX015XXXX 15℃~30℃ 1℃~3℃ 15'
54 MTTR0XXXXX030XXXX 30'
55 MTTR0XXXXX045XXXX 45'
56 MTTR0XXXXX060XXXX 60'
57 MTTR0XXXXX015XXXX 4℃~6℃ 15'
58 MTTR0XXXXX030XXXX 30'
59 MTTR0XXXXX045XXXX 45'
60 MTTR0XXXXX060XXXX 60'
61 MTTR0XXXXX015XXXX 7℃~10℃ 15'
62 MTTR0XXXXX030XXXX 30'
63 MTTR0XXXXX045XXXX 45'
64 MTTR0XXXXX060XXXX 60'
65 MTTR035037015XXXX 35℃ 37℃ 15'
66 MTTR035037030XXXX 30'
67 MTTR035037045XXXX 45'
68 MTTR035037060XXXX 60'
69 MTTR035040015XXXX 40℃ 15'
70 MTTR035040030XXXX 30'
71 MTTR035040045XXXX 45'
72 MTTR035040060XXXX 60'
73 MTTR035045015XXXX 45℃ 15'
74 MTTR035045030XXXX 30'
75 MTTR035045045XXXX 45'
76 MTTR035045060XXXX 60'
77 MTTR038039015XXXX 38℃ 39℃ 15'
78 MTTR038039030XXXX 30'
79 MTTR038039045XXXX 45'
80 MTTR038039060XXXX 60'
81 MTTR038042015XXXX 42℃ 15'
82 MTTR038042030XXXX 30'
83 MTTR038042045XXXX 45'
84 MTTR038042060XXXX 60'
85 MTTR038047015XXXX 47℃ 15'
86 MTTR038047030XXXX 30'
87 MTTR038047045XXXX 45'
88 MTTR038047060XXXX 60'
89 MTTR040042015XXXX 40℃ 42℃ 15'
90 MTTR040042030XXXX 30'
91 MTTR040042045XXXX 45'
92 MTTR040042060XXXX 60'
93 MTTR040045015XXXX 45℃ 15'
94 MTTR040045030XXXX 30'
95 MTTR040045045XXXX 45'
96 MTTR040045060XXXX 60'
97 MTTR040050015XXXX 50℃ 15'
98 MTTR040050030XXXX 30'
99 MTTR040050045XXXX 45'
100 MTTR040050060XXXX 60'
101 MTTR042044015XXXX 42℃ 44℃ 15'
102 MTTR042044030XXXX 30'
103 MTTR042044045XXXX 45'
104 MTTR042044060XXXX 60'
105 MTTR042047015XXXX 47℃ 15'
106 MTTR042047030XXXX 30'
107 MTTR042047045XXXX 45'
108 MTTR042047060XXXX 60'
109 MTTR042052015XXXX 52℃ 15'
110 MTTR042052030XXXX 30'
111 MTTR042052045XXXX 45'
112 MTTR042052060XXXX 60'
113 MTTR045047015XXXX 45℃ 47℃ 15'
114 MTTR045047030XXXX 30'
115 MTTR045047045XXXX 45'
116 MTTR045047060XXXX 60'
117 MTTR045050015XXXX 50℃ 15'
118 MTTR045050030XXXX 30'
119 MTTR045050045XXXX 45'
120 MTTR045050060XXXX 60'
121 MTTR045055015XXXX 55℃ 15'
122 MTTR045055030XXXX 30'
123 MTTR045055045XXXX 45'
124 MTTR045055060XXXX 60'
125 MTTRXXXXXX015XXXX 50℃~150℃ 1℃~5℃ 15'
126 MTTRXXXXXX030XXXX 30'
127 MTTRXXXXXX045XXXX 45'
128 MTTRXXXXXX060XXXX 60'
129 MTTRXXXXXX015XXXX 50℃~150℃ 6℃~10℃ 15'
130 MTTRXXXXXX030XXXX 30'
131 MTTRXXXXXX045XXXX 45'
132 MTTRXXXXXX060XXXX 60'
133 MTTR110115015XXXX 110℃ 115℃ 15'
134 MTTR110115030XXXX 30'
135 MTTR110115045XXXX 45'
136 MTTR110115060XXXX 60'
137 MTTR110120015XXXX 120℃ 15'
138 MTTR110120030XXXX 30'
139 MTTR110120045XXXX 45'
140 MTTR110120060XXXX 60'
141 MTTR115120015XXXX 115℃ 120℃ 15'
142 MTTR115120030XXXX 30'
143 MTTR115120045XXXX 45'
144 MTTR115120060XXXX 60'
145 MTTR115125015XXXX 125℃ 15'
146 MTTR115125030XXXX 30'
147 MTTR115125045XXXX 45'
148 MTTR115125060XXXX 60'
149 MTTR175180015XXXX 175℃ 180℃ 15'
150 MTTR175180030XXXX 30'
151 MTTR175180045XXXX 45'
152 MTTR175180060XXXX 60'
153 MTTR175185015XXXX 185℃ 15'
154 MTTR175185030XXXX 30'
155 MTTR175185045XXXX 45'
156 MTTR175185060XXXX 60'
  • Models Highlighted are standard models. The delivery time for these models is shorter.
  • Models in BLUE are special models with higher temperature range up to 180℃.
  • Standard Temperatures -30℃~120℃
    Voltage: 3.7V~24V
    Maximum Current: 2.5A (Type A); 4A (Type D)
    Other specifications not listed are also available upon request.
    For example:
    0℃ ON / 11℃ OFF for the Duration of 10' / 11' / 12' ... 58' / 59' / 60' /120'
    5℃ ON / 20℃ OFF for the Duration of 1H / 1.5H / 2H ... 22H / 23H / 24H
    40℃ ON / 46℃ OFF for the Duration of 1H / 2H / 3H ... 22H / 23H / 24H

MTC Model

Constant Temperature Controller with Loop Timer

A constant temperature and loop ON/OFF time interval are preset for MTC model. This can be used for medical heating devices or body warmers that are in direct contact with the skin, such as waist heaters and shoulder heaters. This prevents the contacted body part from becoming insensitive to heat causing cold burn. The ON-OFF switch will help stimulate the senses and helps to improve the dilation and elasticity of blood vessels.

MTC Model Part Numbering
No. Model Constant Temperature(℃) Loop
ON (min) OFF (min)
1 MTC-300201XXXX -30℃ 2' 1'
2 MTC-300301XXXX 3' 1'
3 MTC-300302XXXX 3' 2'
4 MTC-300402XXXX 4' 2'
5 MTC-250201XXXX -25℃ 2' 1'
6 MTC-250301XXXX 3' 1'
7 MTC-250302XXXX 3' 2'
8 MTC-250402XXXX 4' 2'
9 MTC-XX0201XXXX -20℃~-10℃ 2' 1'
10 MTC-XX0301XXXX 3' 1'
11 MTC-XX0302XXXX 3' 2'
12 MTC-XX0402XXXX 4' 2'
13 MTC-050201XXXX -5℃ 2' 1'
14 MTC-050301XXXX 3' 1'
15 MTC-050302XXXX 3' 2'
16 MTC-050402XXXX 4' 2'
17 MTC0000201XXXX 0℃ 2' 1'
18 MTC0000301XXXX 3' 1'
19 MTC0000302XXXX 3' 2'
20 MTC0000402XXXX 4' 2'
21 MTCXXX0201XXXX 5℃~30℃ 2' 1'
22 MTCXXX0301XXXX 3' 1'
23 MTCXXX0302XXXX 3' 2'
24 MTCXXX0402XXXX 4' 2'
25 MTC0370201XXXX 37℃ 2' 1'
26 MTC0370301XXXX 3' 1'
27 MTC0370302XXXX 3' 2'
28 MTC0370402XXXX 4' 2'
29 MTC0420201XXXX 42℃ 2' 1'
30 MTC0420301XXXX 3' 1'
31 MTC0420302XXXX 3' 2'
32 MTC0420422XXXX 4' 2'
33 MTC0450201XXXX 45℃ 2' 1'
34 MTC0450301XXXX 3' 1'
35 MTC0450302XXXX 3' 2'
36 MTC0450402XXXX 4' 2'
37 MTC0480201XXXX 48℃ 2' 1'
38 MTC0480301XXXX 3' 1'
39 MTC0480302XXXX 3' 2'
40 MTC0480402XXXX 4' 2'
41 MTC0520201XXXX 52℃ 2' 1'
42 MTC0520301XXXX 3' 1'
43 MTC0520302XXXX 3' 2'
44 MTC0520402XXXX 4' 2'
45 MTCXXX0201XXXX 60℃~115℃ 2' 1'
46 MTCXXX0301XXXX 3' 1'
47 MTCXXX0302XXXX 3' 2'
48 MTCXXX0402XXXX 4' 2'
49 MTC1200201XXXX 120℃ 2' 1'
50 MTC1200301XXXX 3' 1'
51 MTC1200302XXXX 3' 2'
52 MTC1200402XXXX 4' 2'
53 MTCXXX0201XXXX 125℃~175℃ 2' 1'
54 MTCXXX0301XXXX 3' 1'
55 MTCXXX0302XXXX 3' 2'
56 MTCXXX0402XXXX 4' 2'
57 MTC180001001XXXX 180℃ 1' 1'
58 MTC180001002XXXX 1' 2'
59 MTC180002001XXXX 2' 1'
60 MTC180002002XXXX 2' 2'
  • Models Highlighted are standard models. The delivery time for these models is shorter.
  • Models in BLUE are special models with higher temperature range up to 180℃.
  • Standard Temperatures -30℃~120℃
    Voltage: 3.7V~24V
    Maximum Current: 2.5A (Type A); 4A (Type D)
  • Other specifications not listed are also available upon request.

MTTC Model

Constant Temperature Controller with Loop Timer and Duration Setting (Special Model)

The applications and settings of MTTC model is very much alike to MTC model, except with additonal set time control (duration setting). It is ideal for unsupervised short-term heating on sensitive devices or human body.

MTTC Model Part Numbering
No. Model Constant Temperature(℃) Loop(min) Duration (min)
ON OFF
1 MTTC-300201015XXXX -30℃ 2' 1' 15'
2 MTTC-300201030XXXX 30'
3 MTTC-300201045XXXX 45'
4 MTTC-300201060XXXX 60'
5 MTTC-300301015XXXX 3' 1' 15'
6 MTTC-300301030XXXX 30'
7 MTTC-300301045XXXX 45'
8 MTTC-300301060XXXX 60'
9 MTTC-300302015XXXX 3' 2' 15'
10 MTTC-300302030XXXX 30'
11 MTTC-300302045XXXX 45'
12 MTTC-300302060XXXX 60'
13 MTTC-300402015XXXX 4' 2' 15'
14 MTTC-300402030XXXX 30'
15 MTTC-300402045XXXX 45'
16 MTTC-300402060XXXX 60'
17 MTTC-050201015XXXX -25℃ 2' 1' 15'
18 MTTC-050201030XXXX 30'
19 MTTC-050201045XXXX 45'
20 MTTC-050201060XXXX 60'
21 MTTC-050301015XXXX 3' 1' 15'
22 MTTC-050301030XXXX 30'
23 MTTC-050301045XXXX 45'
24 MTTC-050301060XXXX 60'
25 MTTC-050302015XXXX 3' 2' 15'
26 MTTC-050302030XXXX 30'
27 MTTC-050302045XXXX 45'
28 MTTC-050302060XXXX 60'
29 MTTC-050402015XXXX 4' 2' 15'
30 MTTC-050402030XXXX 30'
31 MTTC-050402045XXXX 45'
32 MTTC-050402060XXXX 60'
33 MTTC0000201015XXXX 0℃ 2' 1' 15'
34 MTTC0000201030XXXX 30'
35 MTTC0000201045XXXX 45'
36 MTTC0000201060XXXX 60'
37 MTTC0000301015XXXX 3' 1' 15'
38 MTTC0000301030XXXX 30'
39 MTTC0000301045XXXX 45'
40 MTTC0000301060XXXX 60'
41 MTTC0000302015XXXX 3' 2' 15'
42 MTTC0000302030XXXX 30'
43 MTTC0000302045XXXX 45'
44 MTTC0000302060XXXX 60'
45 MTTC0000402015XXXX 4' 2' 15'
46 MTTC0000402030XXXX 30'
47 MTTC0000402045XXXX 45'
48 MTTC0000402060XXXX 60'
49 MTTCXXX0201015XXXX 5℃ 2' 1' 15'
50 MTTCXXX0201030XXXX 30'
51 MTTCXXX0201045XXXX 45'
52 MTTCXXX0201060XXXX 60'
53 MTTCXXX0301015XXXX 3' 1' 15'
54 MTTCXXX0301030XXXX 30'
55 MTTCXXX0301045XXXX 45'
56 MTTCXXX0301060XXXX 60'
57 MTTCXXX0302015XXXX 3' 2' 15'
58 MTTCXXX0302030XXXX 30'
59 MTTCXXX0302045XXXX 45'
60 MTTCXXX0302060XXXX 60'
61 MTTCXXX0402015XXXX 4' 2' 15'
62 MTTCXXX0402030XXXX 30'
63 MTTCXXX0402045XXXX 45'
64 MTTCXXX0402060XXXX 60'
65 MTTC0370201015XXXX 37℃ 2' 1' 15'
66 MTTC0370201030XXXX 30'
67 MTTC0370201045XXXX 45'
68 MTTC0370201060XXXX 60'
69 MTTC0370301015XXXX 3' 1' 15'
70 MTTC0370301030XXXX 30'
71 MTTC0370301045XXXX 45'
72 MTTC0370301060XXXX 60'
73 MTTC0370302015XXXX 3' 2' 15'
74 MTTC0370302030XXXX 30'
75 MTTC0370302045XXXX 45'
76 MTTC0370302060XXXX 60'
77 MTTC0370402015XXXX 4' 2' 15'
78 MTTC0370402030XXXX 30'
79 MTTC0370402045XXXX 45'
80 MTTC0370402060XXXX 60'
81 MTTC0420201015XXXX 42℃ 2' 1' 15'
82 MTTC0420201030XXXX 30'
83 MTTC0420201045XXXX 45'
84 MTTC0420201060XXXX 60'
85 MTTC0420301015XXXX 3' 1' 15'
86 MTTC0420301030XXXX 30'
87 MTTC0420301045XXXX 45'
88 MTTC0420301060XXXX 60'
89 MTTC0420302015XXXX 3' 2' 15'
90 MTTC0420302030XXXX 30'
91 MTTC0420302045XXXX 45'
92 MTTC0420302060XXXX 60'
93 MTTC0420402015XXXX 4' 2' 15'
94 MTTC0420402030XXXX 30'
95 MTTC0420402045XXXX 45'
96 MTTC0420402060XXXX 60'
97 MTTC0450201015XXXX 45℃ 2' 1' 15'
98 MTTC0450201030XXXX 30'
99 MTTC0450201045XXXX 45'
100 MTTC0450201060XXXX 60'
101 MTTC0450301015XXXX 3' 1' 15'
102 MTTC0450301030XXXX 30'
103 MTTC0450301045XXXX 45'
104 MTTC0450301060XXXX 60'
105 MTTC0450302015XXXX 3' 2' 15'
106 MTTC0450302030XXXX 30'
107 MTTC0450302045XXXX 45'
108 MTTC0450302060XXXX 60'
109 MTTC0450402015XXXX 4' 2' 15'
110 MTTC0450402030XXXX 30'
111 MTTC0450402045XXXX 45'
112 MTTC0450402060XXXX 60'
113 MTTC0480201015XXXX 48℃ 2' 1' 15'
114 MTTC0480201030XXXX 30'
115 MTTC0480201045XXXX 45'
116 MTTC0480201060XXXX 60'
117 MTTC0480301015XXXX 3' 1' 15'
118 MTTC0480301030XXXX 30'
119 MTTC0480301045XXXX 45'
120 MTTC0480301060XXXX 60'
121 MTTC0480302015XXXX 3' 2' 15'
122 MTTC0480302030XXXX 30'
123 MTTC0480302045XXXX 45'
124 MTTC0480302060XXXX 60'
125 MTTC0480402015XXXX 4' 2' 15'
126 MTTC0480402030XXXX 30'
127 MTTC0480402045XXXX 45'
128 MTTC0480402060XXXX 60'
129 MTTC0520201015XXXX 52℃ 2' 1' 15'
130 MTTC0520201030XXXX 30'
131 MTTC0520201045XXXX 45'
132 MTTC0520201060XXXX 60'
133 MTTC0520301015XXXX 3' 1' 15'
134 MTTC0520301030XXXX 30'
135 MTTC0520301045XXXX 45'
136 MTTC0520301060XXXX 60'
137 MTTC0520302015XXXX 3' 2' 15'
138 MTTC0520302030XXXX 30'
139 MTTC0520302045XXXX 45'
140 MTTC0520302060XXXX 60'
141 MTTC0520402015XXXX 4' 2' 15'
142 MTTC0520402030XXXX 30'
143 MTTC0520402045XXXX 45'
144 MTTC0520402060XXXX 60'
145 MTTCXXX0201015XXXX 60℃~115℃ 2' 1' 15'
146 MTTCXXX0201030XXXX 30'
147 MTTCXXX0201045XXXX 45'
148 MTTCXXX0201060XXXX 60'
149 MTTCXXX0301015XXXX 3' 1' 15'
150 MTTCXXX0301030XXXX 30'
151 MTTCXXX0301045XXXX 45'
152 MTTCXXX0301060XXXX 60'
153 MTTCXXX0302015XXXX 3' 2' 15'
154 MTTCXXX0302030XXXX 30'
155 MTTCXXX0302045XXXX 45'
156 MTTCXXX0302060XXXX 60'
157 MTTCXXX0402015XXXX 4' 2' 15'
158 MTTCXXX0402030XXXX 30'
159 MTTCXXX0402045XXXX 45'
160 MTTCXXX0402060XXXX 60'
161 MTTC1200201015XXXX 120℃ 2' 1' 15'
162 MTTC1200201030XXXX 30'
163 MTTC1200201045XXXX 45'
164 MTTC1200201060XXXX 60'
165 MTTC1200301015XXXX 3' 1' 15'
166 MTTC1200301030XXXX 30'
167 MTTC1200301045XXXX 45'
168 MTTC1200301060XXXX 60'
169 MTTC1200302015XXXX 3' 2' 15'
170 MTTC1200302030XXXX 30'
171 MTTC1200302045XXXX 45'
172 MTTC1200302060XXXX 60'
173 MTTC1200402015XXXX 4' 2' 15'
174 MTTC1200402030XXXX 30'
175 MTTC1200402045XXXX 45'
176 MTTC1200402060XXXX 60'
177 MTTCXXX0201015XXXX 125℃~175℃ 2' 1' 15'
178 MTTCXXX0201030XXXX 30'
179 MTTCXXX0201045XXXX 45'
180 MTTCXXX0201060XXXX 60'
181 MTTCXXX0301015XXXX 3' 1' 15'
182 MTTCXXX0301030XXXX 30'
183 MTTCXXX0301045XXXX 45'
184 MTTCXXX0301060XXXX 60'
185 MTTCXXX0302015XXXX 3' 2' 15'
186 MTTCXXX0302030XXXX 30'
187 MTTCXXX0302045XXXX 45'
188 MTTCXXX0302060XXXX 60'
189 MTTCXXX0402015XXXX 4' 2' 15'
190 MTTCXXX0402030XXXX 30'
191 MTTCXXX0402045XXXX 45'
192 MTTCXXX0402060XXXX 60'
193 MTTC1800201015XXXX 180℃ 2' 1' 15'
194 MTTC1800201030XXXX 30'
195 MTTC1800201045XXXX 45'
196 MTTC1800201060XXXX 60'
197 MTTC1800301015XXXX 3' 1' 15'
198 MTTC1800301030XXXX 30'
199 MTTC1800301045XXXX 45'
200 MTTC1800301060XXXX 60'
201 MTTC1800302015XXXX 3' 2' 15'
202 MTTC1800302030XXXX 30'
203 MTTC1800302045XXXX 45'
204 MTTC1800302060XXXX 60'
205 MTTC1800402015XXXX 4' 2' 15'
206 MTTC1800402030XXXX 30'
207 MTTC1800402045XXXX 45'
208 MTTC1800402060XXXX 60'
  • Models Highlighted are standard models. The delivery time for these models is shorter.
  • Models in BLUE are special models with higher temperature range up to 180℃.
  • Standard Temperatures -30℃~120℃
    Voltage: 3.7V~24V
    Maximum Current: 2.5A (Type A); 4A (Type D)
  • Other specifications not listed are also available upon request.

  English homepage Translate to German Translate to Japanese Translate to Spainish Translate to Traditional Chinese
