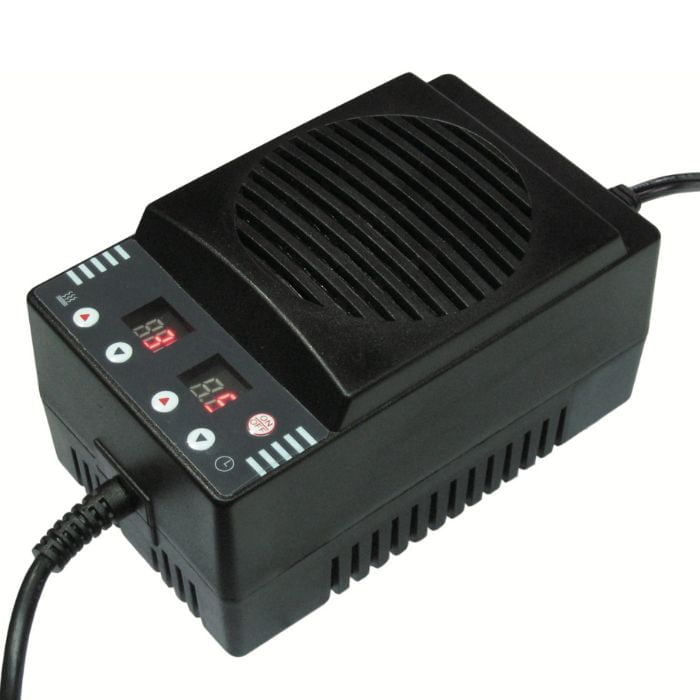

AC to DC Digital Temperature Time Control Device

Product Description

KLC developed a simple to use AC to DC Digital Temperature Time Control device to be used with products that require higher safety with the use of heater products, such as heater blanket, water bed heater, pet warmer etc. No additional adapter is required, simply plug and use! With AC input converted to DC output, it has low electromagnetic wave, making it ideal for use with mattresses heaters. KLC’s AC to DC Digital Temperature Time Controller has the following features:

  • Easy to use
  • Automatically memorize previous time and temperature settings
  • Low electomagnetic wave, low voltage output
  • Built-in adaptor with temperature and time setting function
  • Timer setting available from 30min intervals to continuous operation
  • Can be utilized with KLC heater product ranges

AC to DC Digital Temperature Time Controller (DTC-T Series) – Basic Specifications

Dimension(L x W x H) : 147 x 90 x 80mm
Material : POM outer casing
Input Voltage : AC100V~240V
Output Voltage : DC24V
Frequency : 50Hz/60Hz
Max. Current : 6A (8A/within 1 minute)
Ambient Temperature : -20℃ to 55℃ (-4℉ to 131℉) with no condensation or icing
Ambient Humidity : 0 to 80%RH; with no condensation or icing
Temperature Range : 0 to 150℃ (32℉ to 302℉)
Setting/Indication Method : Front panel digital setting; LED display
Temperature Control : 1 to 150℃ (in units of 1℃)
Time Control : 30min to continuous operation (in units of 30min or 1hr)
Uses NTC as temperature sensor (AC non-insulated); 80cm NTC wire length
