Aluminum Alloy Panel Stamping

Precision Aluminum Alloy Panel Stamping: Custom Enclosures & Faceplates

High-precision aluminum alloy panel stamping services for professional electronic housings, industrial control interfaces, and PTC heater enclosures. We specialize in processing high-grade aluminum alloys, including 5052 and 6061, combining progressive die stamping with advanced surface treatments like anodizing, brushing, and sandblasting. With in-house tooling design and strict tolerance control of up to $\pm 0.1\text{mm}$, we deliver OEM/ODM solutions that provide superior structural integrity and a premium metallic finish for global industrial brands.

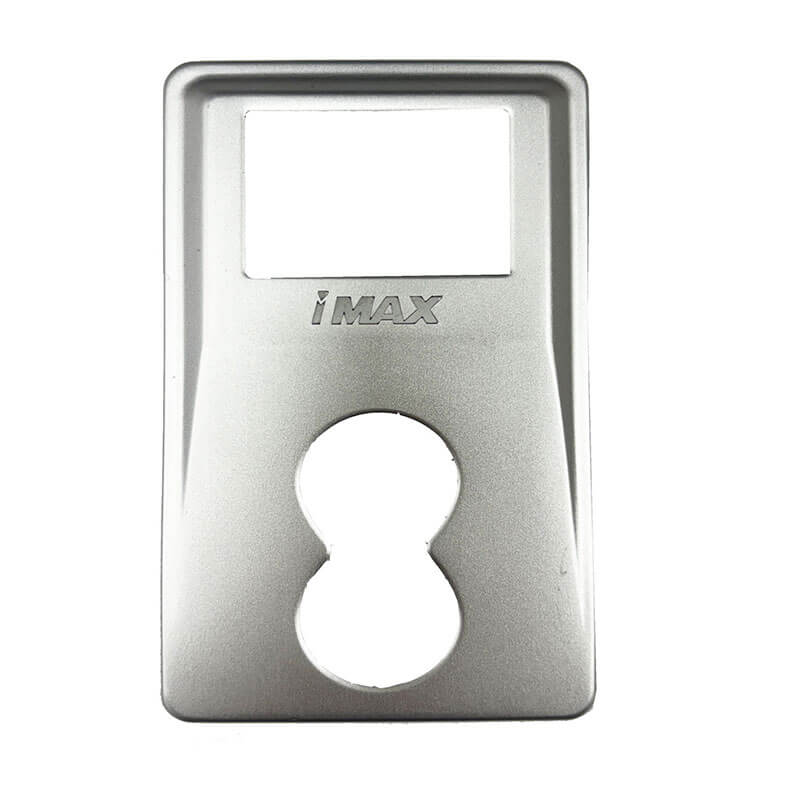

Aluminum alloy panel stamping

Processing:

Stamping Forming>> Surface Sandblasting Treatment>> Diamond Hairline Cutting

1. Stamping Forming
   Through years of mold-making technology, the defect rate of stamped products has been reduced to nearly zero. Products stamped after millions of cycles remain virtually unchanged. This achieves high mold lifespan while reducing mold maintenance costs!
2. Surface Sandblasting Treatment
   Perfect sandblasting technology applied to aluminum alloy delivers a delicate, premium texture with an impeccably smooth touch.

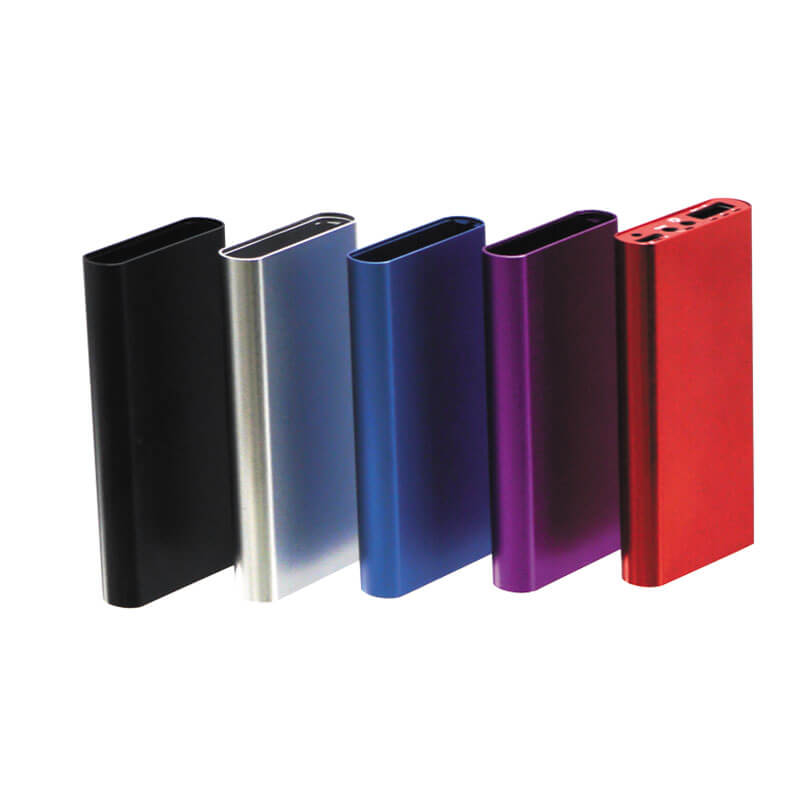

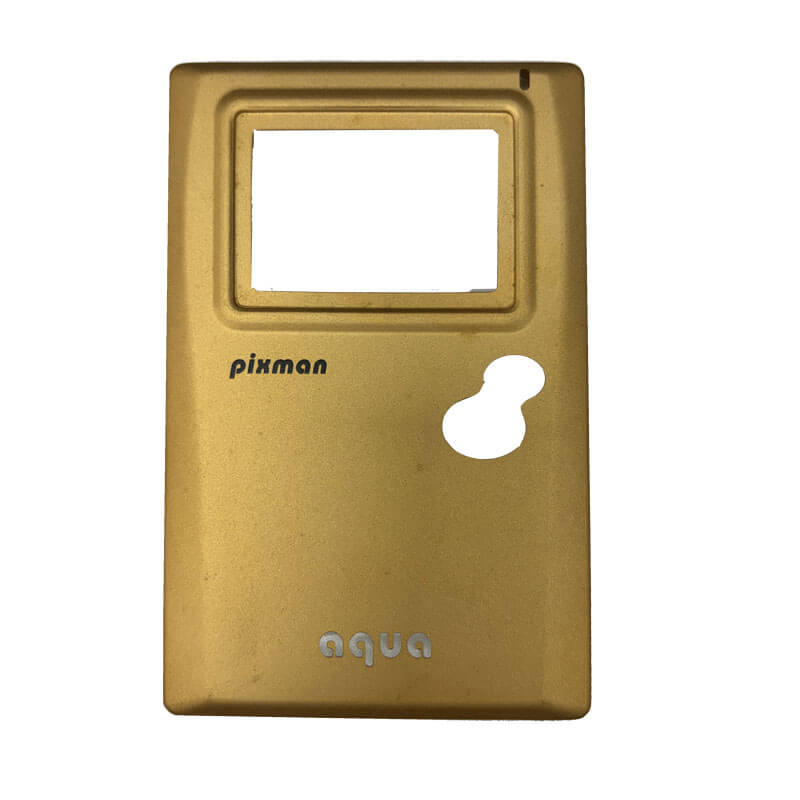

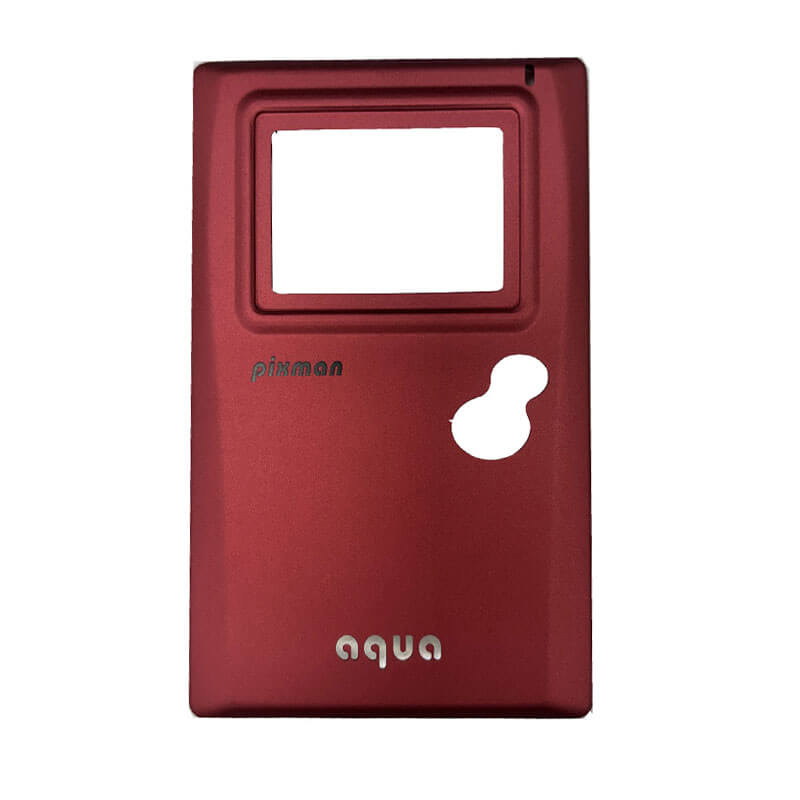

3. Surface Anodizing Treatment
   Beyond the natural color (bottom left), surface anodizing elevates the finished product further. Examples include textured black (top image), cool red (bottom left), vibrant yellow (bottom center), with more colors available.
4. Diamond Hairline Cutting
   Only a few companies in Taiwan possess the technology for diamond hairline cutting. Under lighting, it sparkles with rainbow hues; up close, fine hairline patterns emerge like fine artwork.

Diamond Hairline Cutting

Key Technical Capabilities

• Material Expertise: Specialist in Aluminum 5052 (Formability), 6061 (Structural Strength), and 1050 (Thermal/Electrical Conductivity).
• Manufacturing Precision: Advanced CNC-controlled stamping presses capable of complex hole patterns, precision bending, and deep-drawn geometries.
• Aesthetic Quality: Specialized “No-Mar” stamping processes to ensure surface flatness and burr-free edges for consumer-facing panels.
• One-Stop Production: Integrated workflow from CAD/CAM mold design and rapid prototyping to high-volume mass production.
• Surface Finishing: Anodizing (Multiple Colors), Hairline Brushing, Sandblasting, Silk Screening, Laser Engraving
• Processing Services: Punching, Bending, Deep Drawing, Tapping, PEM Stud Insertion
• Compliance: ISO 9001:2015 Certified, RoHS & REACH Compliant

Surface Treatment & Aesthetic Options

1. Anodizing: Provides a durable, corrosion-resistant oxide layer in various colors (Clear, Black, Blue, Gold).
2. Brushing (Hairline): Creates a high-end linear texture popular in consumer electronics and premium appliances.
3. Sandblasting: Results in a uniform, matte, non-reflective finish that hides fingerprints and minor scratches.
4. Custom Graphic Application: High-precision silk screening and laser etching for logos, warning labels, and control icons.

 Industrial Applications

1. PTC Heater & HVAC Control Panels

Custom-engineered panels designed for thermal stability and durability in high-temperature environments, ensuring long-term UI/UX reliability.

2. Telecommunications & Server Enclosures

Lightweight, EMI-shielded aluminum panels for network equipment, providing both protection and heat dissipation benefits.

3. Industrial Instrumentation

Ruggedized faceplates for medical devices, testing equipment, and industrial machinery that require chemical resistance and clear labeling.

Get a Precision Quote – Send Your Drawings (STEP/DWG) Today!

Ready to Quote? Please provide:

1. 2D/3D Drawings (PDF, STEP, or DWG)
2. Material Specifications (e.g., AL 5052, SUS 304)
3. Estimated Annual Volume (EAV)
4. Required Surface Finish (e.g., Anodizing, Brushing)

And email us: info@ptc-heater.com.tw
