High-Power Thermal Test Emulator (TTE)-Thermal Test Vehicle (TTV)

What is a Thermal Test Emulator (TTE)?

A Thermal Test Emulator (TTE) is a Thermal Test Vehicle (TTV) used to replicate the thermal output of high-performance processors and mainboard components (CPUs, GPUs, and AI Servers, and other semiconductor devices). The Thermal Test Emulator (TTE) extends the capabilities of TTVs by combining multiple TTV modules to simulate the total heat load of an entire server rack or cabinet. It provides engineers with an accurate heat simulation, enabling them to test and validate the efficiency of cooling solutions, such as heatsinks, fans, and liquid cooling systems, before the final hardware is available. TTEs are widely used in R&D labs, server environments, and high-performance computing (HPC) settings to optimize thermal management systems.

This modular thermal test solution ensures comprehensive evaluation of cooling efficiency for modern AI servers, GPU clusters, HPC workloads, data center and CDU .

Thermal Test Emulator (TTE) – 3D View

Need 3D simulations or STEP files? Contact us and get exclusive technical support!

Overview:

• Thermal Test Emulator (TTE) simulates the heat output of CPUs, GPUs, HPC processors, and other high-power electronics.

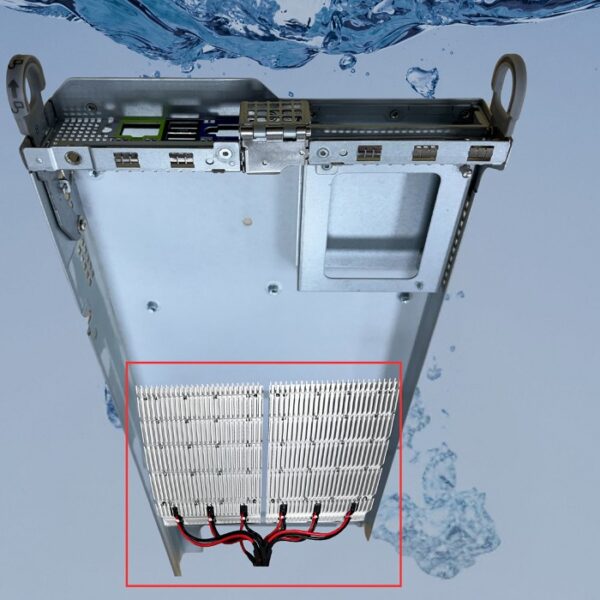

• Designed for use in server racks, cooling systems, and immersion cooling tanks.
• Provides engineers with accurate thermal simulations for testing and validating cooling solutions before hardware deployment.

Whether you’re focused on high-power electronics, AI chipsets thermal testing, or AI thermal management for data centers, this emulator is the ultimate tool for next-generation thermal management development.

(Updated September 2025 · Reviewed by KLC Thermal Engineering Team)

Key Features

1. Accurate Heat Simulation
   • Delivers real-time thermal performance simulations for CPU, GPU, HPC processors, and AI servers, with a power output of up to 12,000W.
   • Provides a comprehensive thermal profile, helping engineers optimize cooling solutions for critical components.
2. Enhanced Heat Dissipation

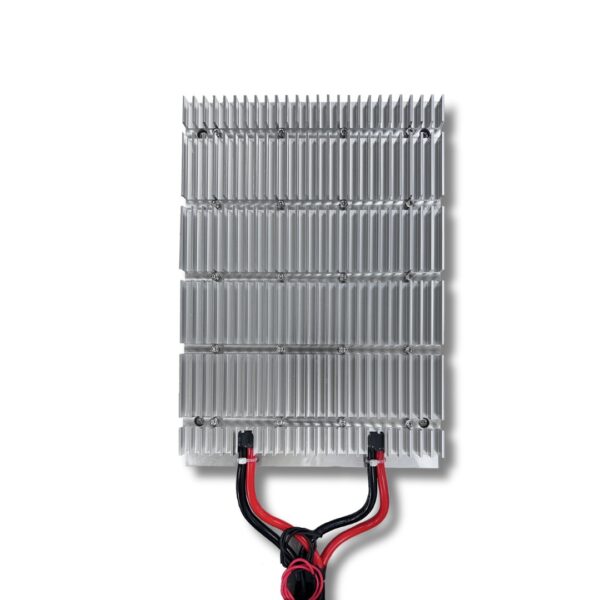

   • Finned design improves cooling efficiency by rapidly dissipating heat from high-power components.
3. Cooling System Compatibility:
   • Designed to integrate with immersion cooling tanks, enabling high-efficiency liquid cooling—ideal for AI hardware simulation and thermal management in high-density data centers.
   • Validates air, liquid, cold plate, and immersion cooling solutions.
4. Rapid Integration:
   • Built for quick installation into server systems, minimizing downtime and making it perfect for R&D environments focused on thermal management optimization.

Benefits of  Thermal Test Emulator (TTE) :

1. Optimize Thermal Designs: Perfect for testing and optimizing heat sink systems, ensuring effective thermal management strategies, ensuring effective thermal management strategies.
2. Improve Product Reliability: With accurate heat simulation for CPU, GPU, and HPC, this emulator allows for testing how different components react to extreme heat.
3. Support Advanced Cooling Systems: Compatibility with immersion cooling systems enables high-efficiency cooling solutions, particularly beneficial in high-density data centers.
4. Cost-Effective Testing: Save on expensive hardware iterations by simulating realistic heat loads, enabling early detection of overheating issues without needing real components.
5. Our Thermal Emulator is the ultimate tool for engineers and developers working on advanced thermal management, ensuring the stability of your systems even under high thermal loads.

Applications

• Performance evaluation of CPUs, GPUs, and HPC components under various thermal conditions.
• Development and testing of thermal management strategies for advanced server systems.
• Validation of cooling solutions in immersion cooling environments.

Why Choose Our Thermal Test Emulator?

With a commitment to excellence, our Thermal Test Emulator stands at the forefront of thermal simulation technology. By enabling precise thermal behavior analysis, it supports engineers and researchers in achieving optimal thermal performance for next-generation processors and semiconductor components.

Specifications

Customization: The voltage, current, and module size can be modified based on the client’s requirements.

Customization Options

Tailored voltage, current, and dimension options available upon request. Contact us for custom configurations: info@ptc-heater.com.tw

Integrate TTE thermal simulation solutions into your AI and HPC development pipelines Now! Validate cooling performance, improve energy efficiency, and reduce system risk before deploying critical hardware.

Frequently Asked Questions (FAQs)

1. What is a Rack Server Thermal Test Emulator (TTE)?
A TTE is a rack-level thermal simulation module composed of multiple TTVs (Thermal Test Vehicles). It simulates the total heat output of a complete server board or rack, enabling engineers to evaluate overall thermal performance before hardware deployment.
For example, a single rack can reach a total power consumption of around 12,000 W, while a cabinet containing 25 racks may reach up to 300,000 W (300 kW).

2. What are the power specifications of the Thermal Test Emulator (TTE)?
The standard modules include:

• 1600 W (50 V, 32 A)

• 3200 W (2 modules)

• 4800 W (3 modules)

• 9600 W (4 modules)
  Custom configurations are available up to 10,000 W (50 V, 200 A). Additional power levels can be customized by adjusting the number of heater modules. Please contact our engineers for tailored designs.

3. Which cooling systems does the Thermal Test Emulator (TTE) support?
The TTE is compatible with:

• Immersion cooling tanks

• Liquid cooling systems

• Cold plates

• Heat sinks

• High-density thermal load testing in rack server environments

It can simulate heat generation under multiple water-cooled plates in a rack, helping validate CDU (Coolant Distribution Unit) control accuracy and efficiency.

4. What are the advantages of using the Thermal Test Emulator (TTE)?

• Simulates high-power thermal loads

• Enhances cooling system design and efficiency

• Reduces failure risk in deployment

• Improves testing accuracy for AI data centers and high-performance computing (HPC) applications

5. Can the Thermal Test Emulator (TTE) be customized?
Yes. Voltage, current, and module dimensions can be fully customized according to the specific thermal testing requirements of your application.
