Multi-Zone Power TTV (Thermal Test Vehicle)

  • Multi-Zone Hotspot Simulation
  • Ultra-High Power Density Support
  • Chiplet & AI Accelerator Validation
  • Full Customization Support
  • Integrated Sensor Configuration
Request a Quote

Product Description

KLC Multi-Zone Power Thermal Test Vehicle (TTV) for Next-Generation Processors, Chiplets, and AI Accelerators

–  Last updated: January 2026 Reviewed by KLC Thermal Solutions Engineering Team

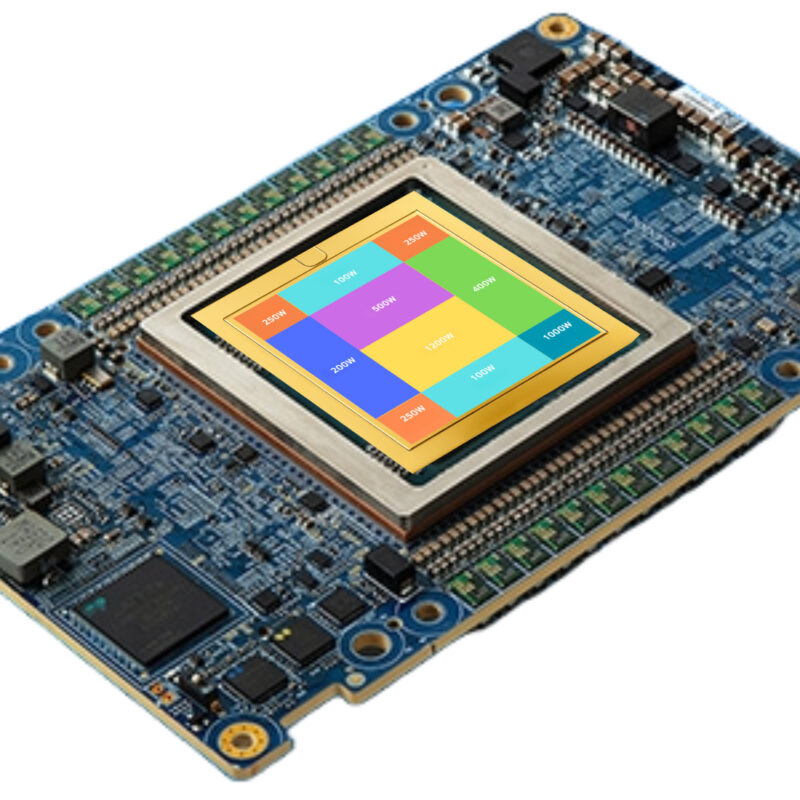

In the rapidly advancing semiconductor landscape of 2026, AI servers, high-performance computing (HPC), GPUs, and chiplet-based heterogeneous integrated circuits generate highly non-uniform heat profiles with intense hotspots from discrete functional blocks like GPU cores, AI accelerators, CPU chiplets, and memory controllers. Traditional single-zone thermal test vehicles fall short in replicating these real-world thermal behaviors.

KLC’s Multi-Zone Power Thermal Test Vehicle (TTV), developed by Taiwan-based KLC Corporation with over 40 years of expertise in PTC heating and advanced thermal control, delivers a highly customizable, independently controllable multi-zone solution. This enables engineers to precisely simulate complex, heterogeneous thermal distributions for accurate validation of cooling systems before committing to costly silicon prototypes.




Why Engineering Teams Choose KLC Multi-Zone Power TTV in 2026

Modern chips demand realistic non-uniform power mapping to address thermal gradients, coupling effects, and spreading challenges. KLC’s multi-zone design provides:

  • Realistic non-uniform power distribution simulation — Highly replicating real silicon thermal maps
  • Full independent zone control — Test scenarios from idle to peak loads across different blocks
  • Ultra-high power density — Meeting extreme demands of next-gen AI and HPC
  • Dynamic & transient simulation — Real-time power adjustments for workload variations
  • Optimized for liquid cooling, heatsink, OAM, and TIM validation — Ensures reliable results under production-level conditions

This outperforms single-zone alternatives by delivering predictive, actionable thermal data that accelerates development while reducing risks.




Key Features

  • Multi-Zone Hotspot Precision
    Custom layouts (standard 2, 4, 6 zones; fully bespoke available) for advanced processors and accelerators
  • Adjustable Super High Power Output
    Voltage-tunable for wide thermal loads, from low to extreme watts
  • Wide Thermal Load Range
    Covers demands for AI accelerators, OAM modules, and high-power GPU testing
  • Liquid/Immersion Cooling Ready
    Designed for water/liquid cold plates and full immersion systems
  • Customization:
    • Sizes: 30×30 mm to 80×80 mm (or custom)
    • Power & Heat Flux: Tailored to your specs
    • Voltage: Fixed (110V/220V) or adjustable 12–600V
    • Optional Integrated Sensors: Real-time per-zone temperature monitoring (or custom)
    • Mechanical: Custom fixtures, sockets, and mounting for seamless integration
    • Safety: Recommend low-power startup with gradual ramp-up

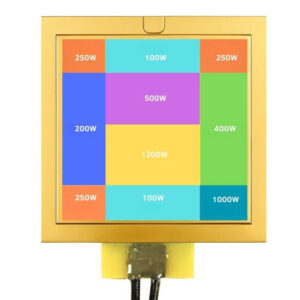

Adjustable Power Dummy Chip for Cooling System Validation-Multi-Zone Design

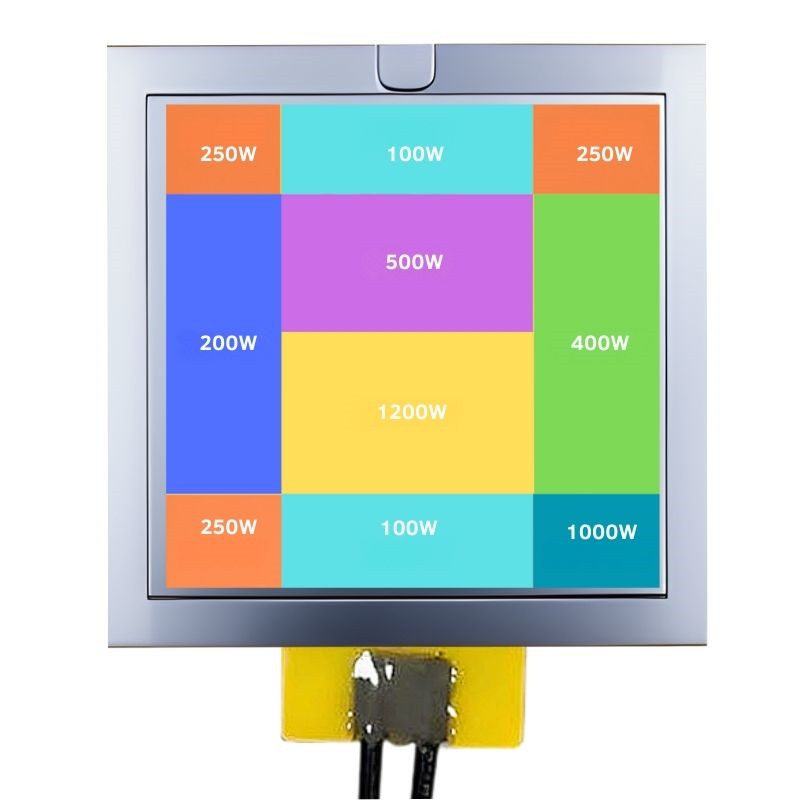

          Multi-Zone Power TTV

Standard configurations typically include 2, 4, or 6 zones, with custom layouts available.




Technical Advantages Over Single-Zone TTVs

TTV new design-Multi-zone Power TTV for themal test of cold plateTTV design-Single zone Power TTV



  • True thermal gradients & hotspots closer to real silicon
  • Independent zone operation — Explore countless workload scenarios
  • High reliability — Built for extreme densities beyond typical production needs
  • Custom multi-zone hotspot designs for large-die simulation




Primary Applications

  • Chiplet Architecture Thermal Analysis — Validate thermal management in multi-die, disaggregated designs
  • AI Accelerator Characterization — Test cooling for high-density tensor/AI processing units
  • GPU Thermal Validation — Multi-core graphics processor hotspot behavior
  • TIM Performance Testing — Evaluate thermal interface materials under realistic, non-uniform loads
  • Cooling Solution Development — Optimize heatsinks, cold plates, and advanced cooling for complex heat sources




Customizable Options

KLC provides full TTV customization to meet application-specific requirements:

  • Custom dimensions (30 × 30 mm to 80 × 80 mm, or other sizes upon request)
  • Target power output
  • Required power density (W/cm² or high-heat-flux design)
  • Fixed or adjustable voltage configurations
  • Integrated temperature sensor options (NTC, RTD, or thermocouple)
  • Mounting, interface, and layout customization
  • Application-specific thermal design (liquid cooling, heat pipe, cold plate, or AI server testing)

Simply provide your required heat load, voltage range, and mechanical constraints, and KLC’s engineering team will design the optimal TTV solution for your system.




How to Select Your TTV

  1. Determine Target Power Range and Operating Voltage
    Identify the thermal load and voltage required for your test scenario.
  2. Specify Constraints and Requirements
    Include footprint size, heat flux, mounting, or sensor requirements.
  3. Temperature Monitoring Needs
    Specify if integrated temperature sensors are required.
  4. Receive Engineering Recommendation
    KLC will recommend the best-fit TTV configuration and provide a complete technical specification sheet for your validation needs.

This approach ensures accurate chip heat simulation, high thermal reliability, and repeatable cooling system evaluation.




Available Power–Voltage Configurations

12V~600V Super High-Power Thermal Test Vehicle (TTV)

Dimensions (mm)Adjustable Voltage (V)Power Range (W)Maximum Current (A)
30 x 3012 ~ 485 ~ 2806
30 x 3024 ~ 8015 ~ 80010
30 x 3048 ~ 12020 ~ 160015
30 x 3080 ~ 20050 ~ 200016
30 x 30120 ~ 250100 ~ 200016
30 x 30200 ~ 400300 ~ 20007
30 x 30250 ~ 600450 ~ 20007
35 x 3512 ~ 485 ~ 40010
35 x 3524 ~ 8015 ~ 100014
35 x 3548 ~ 12030 ~ 200020
35 x 3580 ~ 200100 ~ 220020
35 x 35120 ~ 250200 ~ 250012
35 x 35200 ~ 400500 ~ 25008
35 x 35250 ~ 600750 ~ 25006
40 x 4012 ~ 485 ~ 3808
40 x 4024 ~ 8020 ~ 100013
40 x 4048 ~ 12060 ~ 200019
40 x 4080 ~ 20080 ~ 240020
40 x 40120 ~ 250200 ~ 300016
40 x 40200 ~ 400500 ~ 320011
40 x 40250 ~ 600800 ~ 320011
50 x 5012 ~ 4810 ~ 3808.0
50 x 5024 ~ 8025 ~ 100013.3
50 x 5048 ~ 12060 ~ 160017
50 x 5080 ~ 200150 ~ 250015
50 x 50120 ~ 250300 ~ 400019
50 x 50200 ~ 400850 ~ 450010
50 x 50250 ~ 6001400 ~ 500011
60 x 6012 ~ 4810 ~ 2806
60 x 6024 ~ 8020 ~ 80010
60 x 6048 ~ 12080 ~ 180015
60 x 6080 ~ 200200 ~ 240013
60 x 60120 ~ 250450 ~ 360015
60 x 60200 ~ 4001300 ~ 460012
60 x 60250 ~ 6002000 ~ 500012.5
80 x 8012 ~ 4810 ~ 45010
80 x 8024 ~ 8020 ~ 120016
80 x 8048 ~ 12080 ~ 200020
80 x 8080 ~ 200200 ~ 300019
80 x 80120 ~ 250400 ~ 400021
80 x 80200 ~ 4001200 ~ 600019
80 x 80250 ~ 6001800 ~ 800015

110V / 220V Super High-Power Thermal Test Vehicle (TTV)

Voltage (V)Dimensions (mm)Selectable Power (W)
11030 x 3080, 260, 1500
11035 x 35130, 550, 2100
11040 x 40150, 400, 2000
11050 x 50250, 500, 2000
11060 x 60360, 740, 1500
11080 x 80320, 660, 2400
22030 x 30320, 1000
22035 x 35540, 2200
22040 x 40600, 1600
22050 x 501000, 2000
22060 x 601500, 3000, 6000
22080 x 801300, 2600, 9600

We can tailor your TTV based on:

  • Custom dimensions (30 × 30 mm up to 80 × 80 mm, or other sizes upon request)
  • Target power rating
  • Required power density
  • Fixed or adjustable voltage
  • Integrated temperature sensor options
  • Mounting, interface, and layout customization
  • Application-specific thermal design

Simply share your required heat load, voltage, and mechanical constraints, and our engineering team will design the optimal TTV for your system.




Frequently Asked Questions (FAQ) – Multi-Zone TTV

Q: How many zones are possible? Standard: 2, 4, or 6 zones.
A: Custom layouts available for your specific chip map.

Q: Does it support dynamic/transient testing?
A: Yes — the control interface allows real-time power changes to mimic actual computational workloads.

Q: Are temperature sensors included?
A: Optional integrated thermal sensors provide real-time feedback per zone.

Q: What about mounting?
A: Standard sockets plus fully custom fixtures to fit your test setup.

Q: Typical lead time?
A: 4–6 weeks for standards; 6–8 weeks for customs.




Ready to Advance Your Thermal Validation?

With KLC Corporation’s proven 40+ years in PTC thermal expertise and leadership in high-power TTVs for AI/HPC, partner with a trusted Taiwan innovator for reliable, precise results.

Contact our engineering team today to discuss your requirements — we’ll deliver the optimal Multi-Zone Power TTV configuration tailored to your chiplet, AI accelerator, GPU, or liquid-cooled project.

Email: info@ptc-heater.com.tw

KLC Thermal Test Vehicles — Precision, realistic thermal simulation powering the future of semiconductors.

Start your project now and optimize thermal performance from design to deployment!
