SS型PTC熱風加熱器

本公司的PTC系列產品，除了供應一般規格外，我們也歡迎顧客特殊設計或規格的訂製。黏著式PTC熱風型加熱器的長、寬可隨客戶需求製做。

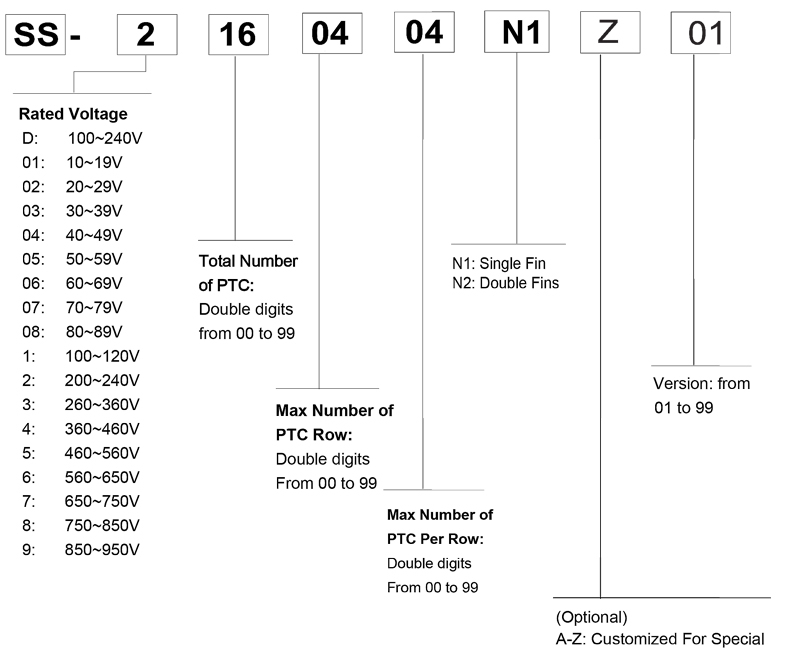

產品型號編碼原則

Single Fin Specifications

Max Inrush Calculation:
Current (A) = P/V
Max Inrush ≤ Current (A) x 1.7

E.g., Model: SS-108V0204B1
P(W) = 500W V = 110V
Current (A) = 500W/110V = 4.54A
Max Inrush = 4.54A x 1.7 ≈ 7. 73A
Max Inrush ≤ 7.73A (may adjust according to application)

	Model	Dimension(mm)			Max Inrush(A=P/V)	Power @ Air Speed 3.3m/s	P (W)	Suitable Frames
		W	L	H
	SS-X04V0202B1	34.6±1.0	48	15	≤A x1.8	≤250W	50-250W
	SS-X06V0203B1		72	15	≤A x1.7	≤400W	100-400W
	SS-X08V0204B1		96	15	≤A x1.7	≤500W	150-500W
	SS-X10V0205B1		120	15	≤A x1.6	≤650W	200-650W
	SS-X12V0206B1		144	15	≤A x1.6	≤800W	300-800W
	SS-X14V0207B1		168	15	≤A x1.5	≤950W	400-950W
	SS-X16V0208B1		192	15	≤A x1.5	≤1100W	500-1100W
	SS-X06V0302B1	46.9±1.0	48	15	≤A x1.7	≤400W	100-400W
	SS-X09V0303B1		72	15	≤A x1.7	≤600W	200-600W
	SS-X12V0304B1		96	15	≤A x1.6	≤800W	300-800W
	SS-X15V0305B1		120	15	≤A x1.5	≤1000W	400-1000W
	SS-X18V0306B1		144	15	≤A x1.45	≤1200W	500-1200W
	SS-X21V0307B1		168	15	≤A x1.45	≤1400W	600-1400W
	SS-X24V0308B1		192	15	≤A x1.4	≤1600W	700-1600W
	SS-X08V0402B1	59.2±1.0	48	15	≤A x1.7	≤550W	200-550W
	SS-X12V0403B1		72	15	≤A x1.6	≤800W	300-800W
	SS-X16V0404B1		96	15	≤A x1.5	≤1000W	400-1000W
	SS-X20V0405B1		120	15	≤A x1.45	≤1300W	500-1300W
	SS-X24V0406B1		144	15	≤A x1.45	≤1500W	600-1500W
	SS-X28V0407B1		168	15	≤A x1.4	≤1750W	700-1750W
	SS-X32V0408B1		192	15	≤A x1.4	≤2000W	800-2000W
	SS-X15V0503B1	71.5±1.2	72	15	≤A x1.5	≤1000W	400-1000W	MSHF-70
	SS-X20V0504B1		96	15	≤A x1.45	≤12500W	500-1250W
	SS-X25V0505B1		120	15	≤A x1.45	≤1500W	600-1500W
	SS-X30V0506B1		144	15	≤A x1.4	≤1800W	700-1800W
	SS-X35V0507B1		168	15	≤A x1.4	≤2200W	800-2200W
	SS-X40V0508B1		192	15	≤A x1.35	≤2500W	1000-2500W
	SS-X24V0604B1	83.6±1.5	96	15	≤A x1.45	≤1400W	600-1400W	MHF-93
	SS-X30V0605B1		120	15	≤A x1.4	≤1800W	700-1800W
	SS-X36V0606B1		144	15	≤A x1.4	≤2200W	800-2200W
	SS-X42V0607B1		168	15	≤A x1.35	≤2600W	1000-2600W
	SS-X48V0608B1		192	15	≤A x1.35	≤3000W	1200-3000W

• Items that are highlighted in the table are standard models. The delivery time for these models is shorter.
• Customized wattage, length and specifications can also be designed for large quantity.

Back to the Top

Double Fin Specifications

	Model	Dimension(mm)			Max Inrush(A=P/V)	Power @ Air Speed 3.3m/s	P (W)	Suitable Frames
		W	L	H
	SS-X01V0101B2	22.2±0.5	24	15	≤A x1.8	≤100W	30-100W
	SS-X02V0102B2		48	15	≤A x1.8	≤190W	30-190W
	SS-X03V0103B2		72	15	≤A x1.7	≤270W	50-270W
	SS-X04V0104B2		96	15	≤A x1.7	≤380W	80-380W
	SS-X05V0105B2		120	15	≤A x1.6	≤470W	100-470W
	SS-X06V0106B2		144		≤A x1.6	≤560W	150-560W
	SS-X07V0107B2		168	15	≤A x1.5	≤650W	200-650W
	SS-X08V0108B2		192	15	≤A x1.5	≤750W	250-750W
	SS-X04V0202B2	43.8±1.0	48	15	≤A x1.8	≤400W	100-400W
	SS-X06V0203B2		72	15	≤A x1.7	≤580W	200-580W
	SS-X08V0204B2		96	15	≤A x1.7	≤760W	300-760W
	SS-X10V0205B2		120	15	≤A x1.6	≤950W	400-950W
	SS-X12V0206B2		144	15	≤A x1.6	≤1120W	500-1120W
	SS-X14V0207B2		168	15	≤A x1.5	≤1300W	500-1300W
	SS-X16V0208B2		192	15	≤A x1.5	≤1500W	600-1500W
	SS-X09V0303B2	65.4±1.0	72	15	≤A x1.7	≤800W	300-800W	MSHF-70
	SS-X12V0304B2		96	15	≤A x1.6	≤1050W	400-1000W
	SS-X15V0305B2		120	15	≤A x1.6	≤1300W	500-1300W
	SS-X18V0306B2		144	15	≤A x1.5	≤1500W	600-1500W
	SS-X21V0307B2		168	15	≤A x1.5	≤1750W	700-1750W
	SS-X24V0308B2		192	15	≤A x1.45	≤2000W	800-2000W
	SS-X12V0403B2	87±1.5	72	15	≤A x1.6	≤1150W	300-1150W
	SS-X16V0404B2		96	15	≤A x1.5	≤1500W	400-1500W	MHF-93
	SS-X20V0405B2		120	15	≤A x1.5	≤1900W	500-1900W
	SS-X24V0406B2		144	15	≤A x1.45	≤2200W	600-2200W
	SS-X28V0407B2		168	15	≤A x1.4	≤2600W	800-2600W
	SS-X32V0408B2		192	15	≤A x1.4	≤3000W	1000-3000W
	SS-X20V0504B2	108.6±1.5	96	15	≤A x1.5	≤1900W	500-1900W
	SS-X25V0505B2		120	15	≤A x1.45	≤2300W	600-2300W
	SS-X30V0506B2		144	15	≤A x1.4	≤2800W	800-2800W
	SS-X35V0507B2		168	15	≤A x1.35	≤3300W	1000-3300W
	SS-X40V0508B2		192	15	≤A x1.3	≤3800W	1200-3800W
	SS-X24V0604B2	130.2±1.5	96	15	≤A x1.45	≤2200W	600-2200W
	SS-X30V0605B2		120	15	≤A x1.4	≤2800W	800-2800W
	SS-X36V0606B2		144	15	≤A x1.35	≤3500W	1000-3500W
	SS-X42V0607B2		168	15	≤A x1.3	≤4000W	1200-4000W
	SS-X48V0608B2		192	15	≤A x1.3	≤4500W	1500-4500W

備註:

• 尺寸(mm) = 長(L)x寬(W)x厚(T)
• 有底色的欄位為一般常用型號。交貨時間較短、價格較便宜。
• 特殊功率、長度、規格皆可應客戶需求訂製。

SS型其它客製尺寸

特殊規格PTC熱風型發熱器

如需特殊規格(功率、尺寸、型狀、散熱需求…等)，歡迎與我們連絡!

客製化範例 :
要求體積小、高功率之PTC熱風型加熱器。每層散熱片皆有一層PTC裸片。

客製長度:
可根據PTC裸片長度做延伸。最多可延伸至15片PTC。
範例:
長度(L) = PTC裸片長(24) x 裸片數量(1~15) + 1mm
=  24 x 5 + 1 = 121mm長

客製寬度:
可根據單支PTC做串連延伸寬度。單支PTC標準寬度為22.5。
單支PTC尺寸請參考下圖:

範例:
寬度(W) = PTC單支寬(22) x 任選1~15支 + 0.5mm
= 22 x 5 + 0.5 = 110.5mm寬

SS型PTC厚度:
標準SS型PTC厚度為15mm，若需加點膠兩邊厚度會較厚。如需加點膠，請告知業務人員。加點膠之產品有下列優點:

• 可防潮
• PTC裸片之銀電極較不易氧化
• 較不易因正、負極短路而跳火花
• 黏著力較強，預防因大力撞擊而分解
• 較美觀

最小尺寸SS型PTC(長 x 寬 x 厚):  25 x 22.5 x 15mm
最大尺寸SS型PTC(長 x 寬 x 厚):  361 x 330 x 16mm

功率運算:
一顆PTC裸片功率約60~120W (功率跟風速與風量有絕對關係)。可以根據所需尺寸大小推算功率。
範例1: 最小尺寸PTC功率
PTC數量= 1
功率(W) = 60~120W

範例2: 最大尺寸PTC功率
PTC數量= 15 x 15 (一支15顆PTC裸片，共15支) = 225顆
功率(W) = 60~120W x 225 = 13500W~27000W

配件範例一 : PTC熱風型加熱器 + PPS外框

耐熱PPS框可搭配PTC熱風型加熱器使用。適用型號如下:

• 外框型號 : MHF-93 (適用於尺寸為96 x 88.5 x 15mm的SS型PTC加熱器)
  型號編碼: SS-XDU44X-1
• 外框型號 : MHF-70 (適用於尺寸為72 x 46/66/70 x 15mm的SS型PTC加熱器)

配件範例二 : PTC熱風型加熱器 + PPS外框 + 風扇

本公司亦提供整組包套配件，包含:

• 尺寸96 x 88.5 x 15mm的SS型PTC加熱器 x 1
• 耐高溫PPS外框(外框型號: MHF-93) x 1
• 120mm x 120mm 軸流式風扇 x 1
• 正、負端線組
• 溫控器 x 1
• 保險絲 x 1

型號編碼:

SS-XDU44X-1A(不組裝配件)
SS-XDU44X-1Aa (組裝所有配件，含固定螺絲)
